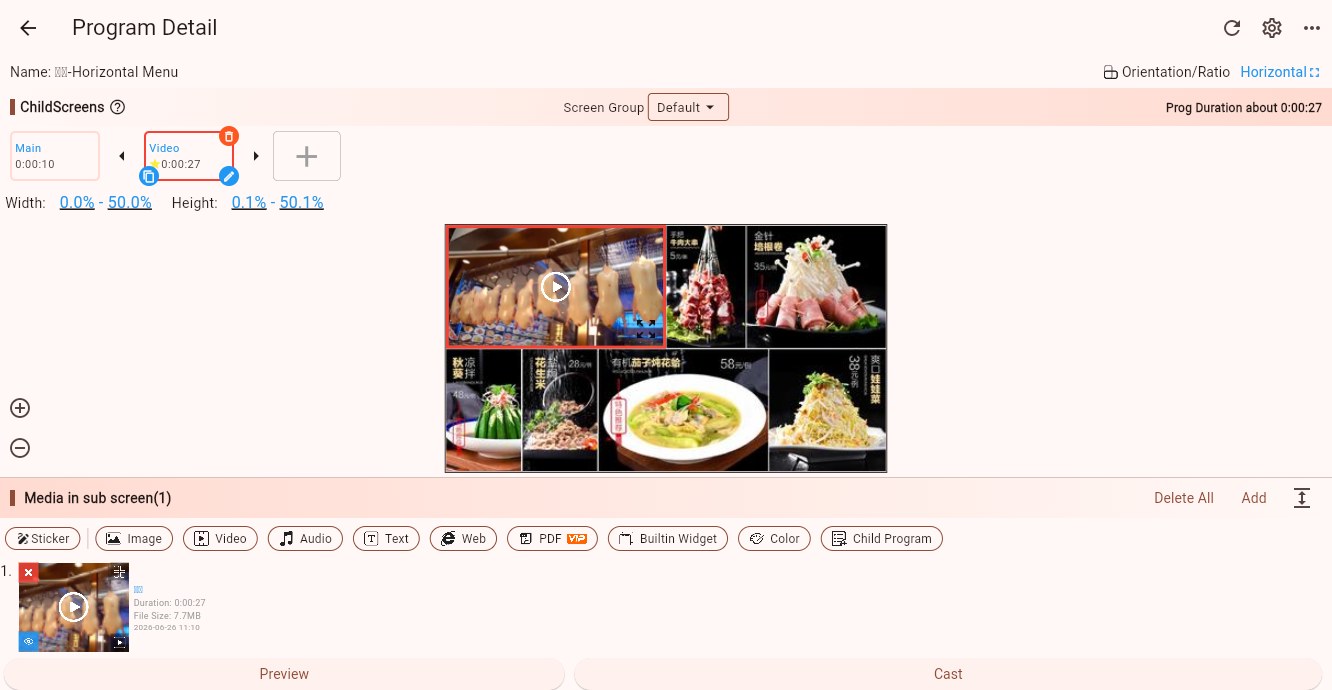

Supported Material Types Overview
1. Image Materials
- Supported Formats: JPG, PNG, GIF, etc.
- Features:
- Customizable display duration and display modes (e.g., contain, fill).
- Blurred background fill for enhanced visual effects.
- Click events for interactive functionality.
2. Video Materials
- Supported Formats: MP4, AVI, etc.
- Features:
- Customizable playback duration and display modes (e.g., contain, fill).
- Progress bar and volume control for better user experience.
- Hardware acceleration and transparent control bar for optimized performance.
3. Audio Materials
- Supported Formats: MP3, WAV, etc.
- Features:
- Customizable playback duration and volume levels.
- Progress bar for easy playback control.
- Transparent control bar for enhanced visual effects.
4. Text Materials
- Features:
- Customizable text content, font, color, size, line spacing, and character spacing.
- Scroll speed and display modes (e.g., normal, scroll).
- Click events for interactive functionality.
5. Web Materials
- Features:
- Load web content via URL links.
- Customizable stay time, vertical and horizontal scroll speeds.
- Transparent background and desktop view loading for optimized display.
6. Built-in Widgets
- Digit Clock
- Displays current time with customizable formats and styles.
- Weather Forecast
- Displays weather information for the current location with customizable area settings.
- Camera
- Displays real-time camera feed with front/rear camera switching and mirroring.
7. Sub-Program Nesting
- Features:
- Supports nesting sub-programs within main programs for multi-level content display.
- Customizable display order, duration, and trigger conditions for sub-programs.
- Seamless switching between sub-programs and main programs for flexible content arrangement.
8. Summary
CXPlayer Information Publishing Software supports various material types, including images, videos, audio, text, web content, and built-in widgets (digit clock, weather forecast, camera), along with sub-program nesting functionality. Users can flexibly configure material parameters to achieve diverse content display and interactive effects, suitable for advertising, information dissemination, event displays, and more.
